Name - Environmentally friendly recycling baler
Modelle - UMPV350 / UMPV 550
Press load - 300- 500 kN
Driver power - 5,5- 7,5 kW
Moudling cycle - 45- 50 sec
Compression box dimension (LxBxH) - 1200x800x1550 mm
Filling hatch (LxB) - 1090x570 mm
Filling height - 1100 mm
Bale format (LxB) - 1200x800x1000 mm
Bale weight - 300- 500 kg
Dimensions (LxBxH) - 1620x1260x2920 mm
Weight - 1650- 1930 kg
Eco-friendly solution
Baling presses bundle materials into compact bales for environmentally friendly transportation, reducing CO2 emissions and promoting sustainable processing. They save space and preserve material quality, unlike press containers or screw compactors.
Generate revenue from waste
The higher the quality of the materials and bales, the easier they are to recycle and the more revenue they can generate.
Advantages of using balers
In this way you benefit from the compaction of your waste and recyclables:
Gain space and tidiness for an effective utilisation of your business premises.
Save time and effort by eliminating the need for pre-shredding or container stuffing.
Maximise truck capacity utilisation to minimise transport and collection costs.
Improving sustainability to help conserve resources and protect the climate.
Reduce the risk of fire, vermin and tripping hazards for maximum workplace safety.
Achieve maximum revenue from your waste through high bale quality.
Generate revenue from your waste

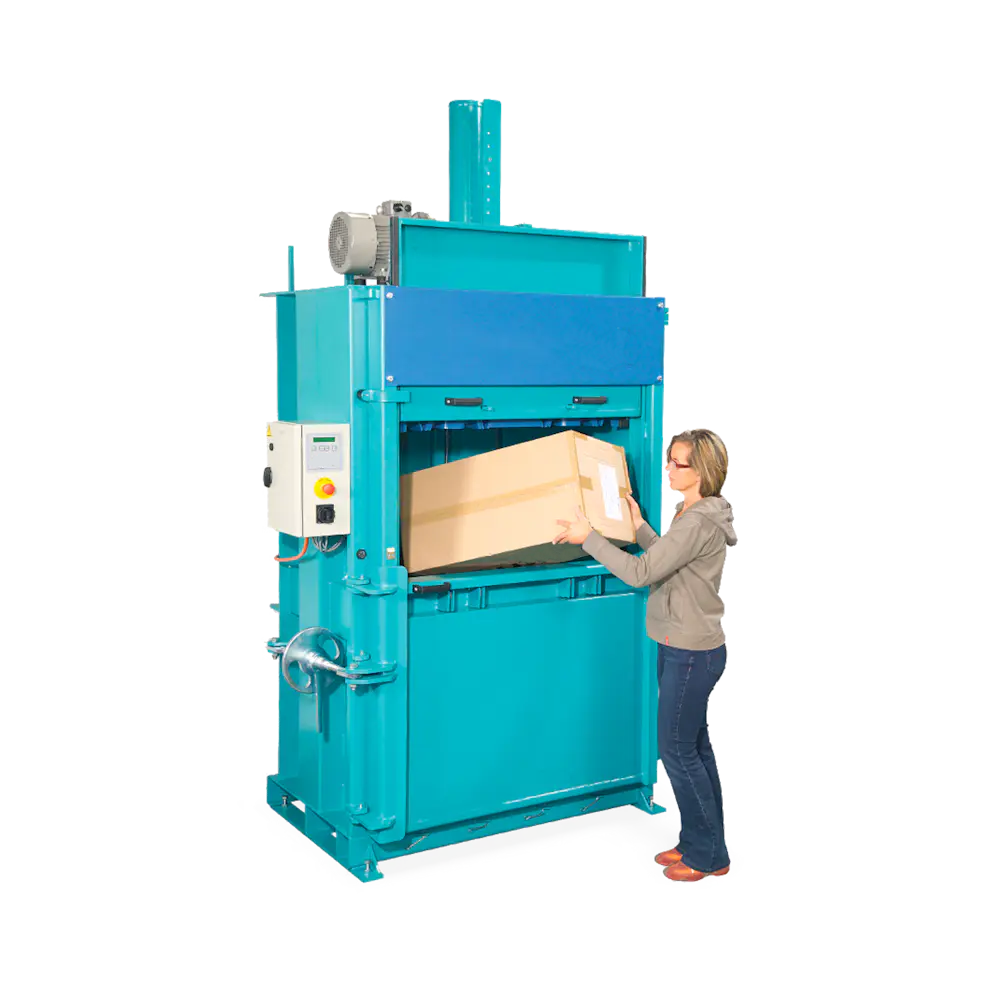

These robust and powerful vertical balers are designed to produce high bale weights in small spaces. The pallet-sized bales can weigh up to 500 kg and are immediately marketable.
The digital display, the automatic bale ejection and a sliding which opens automatically, guarantee a maximum ease of operation. The vertical balers UMPV350 and UMPV500 are suitable for the compaction of cardboard, paper and plastic film - but also for textiles, foam and other plastic material.
-
High bale weights in minimum space
-
Simple operation thanks to digital display with operating instructions and error messages in the respective language (SPS with bale counter and operating hours counter)
-

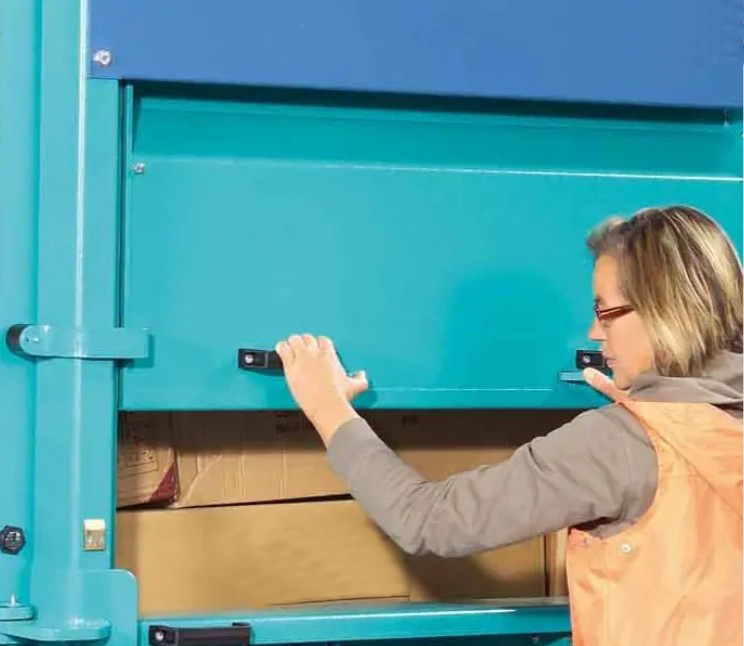

Sliding door opens automatically after pressing cycle
-

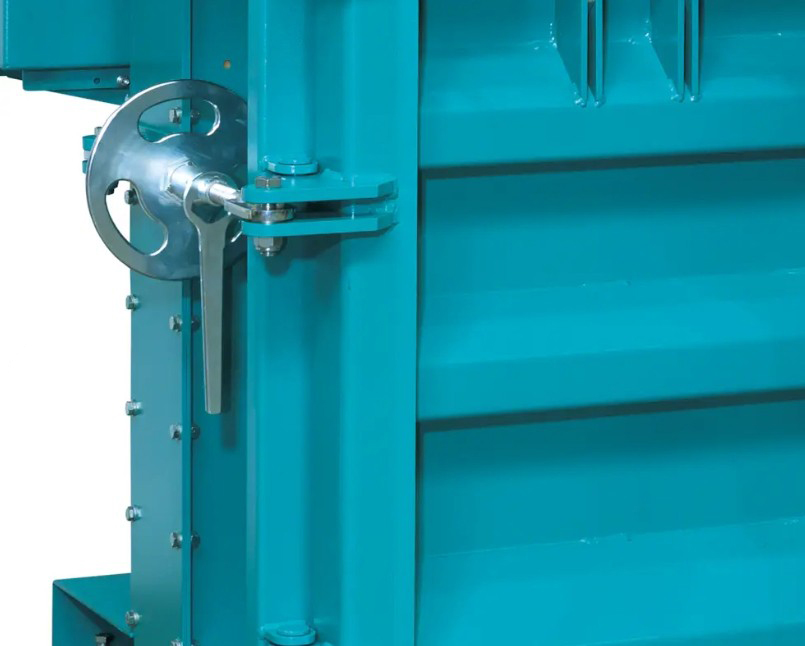

Handweel closing system of the press door is easy to open and guarentees maximum operator safety - even with expaning material
-
Minimum maintenance effort thanks to to the use of durable materials and branded components
-

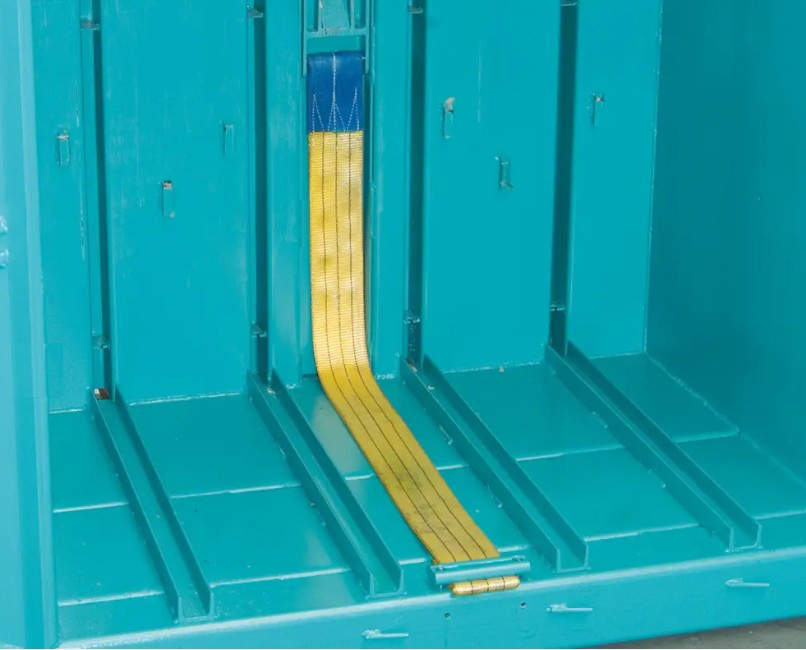

Bale strapping system is easy to handle: dense and stackable bales due to multiple binding with steel wire or PE strapping tape
-

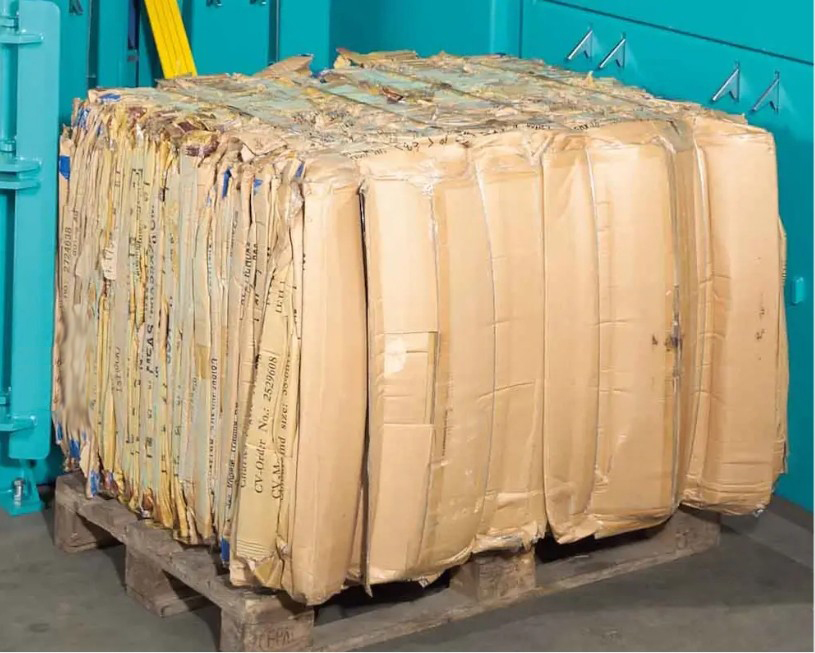

Marketable, palette-sized bales up to 500kg
-
Claws inside the press chamber retain expanding material (e.g. plastic film or textiles) from returning back up – ensuring higher bale weights
-
The bale is fully ejected onto a pallet at the touch of a button
-
Reduced transport height of the machine due to retractable cylinder
-
High durability and reliability based on our quality standards
