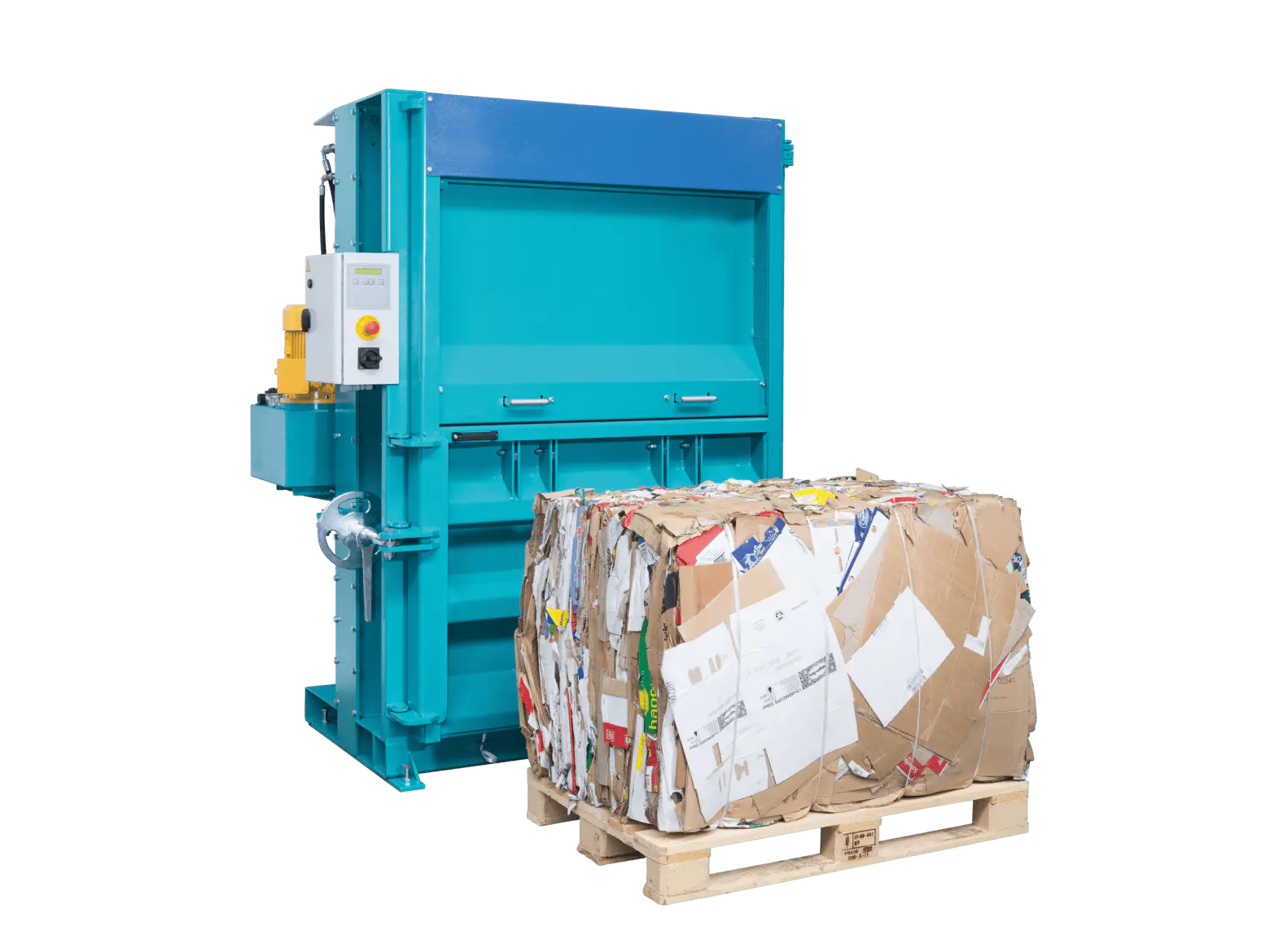

Environmentally friendly recycling vertical brick press - UMPV310 / UMPV 570

The main benefits:
~Plug-&-Bale: no on-site assembly
~Sliding door opens automatically
~Display with error messages for easy operation
~User-friendly, fast and energy-saving
~Ideal solution for retailers and small shops

Categories - Vertical Balers

Materials - Paper & Cardboard, Plastics

Industries -
Paper & Packaging Industry, Recycling & Waste Disposal, Retail & Mail Order

Name - Environmentally friendly recycling vertical brick press
Modelle - UMPV310 / UMPV 570
Press load - 260- 520 kN
Driver power - 4- 7,5 kW
Moudling cycle - 40- 45 sec
Compression box dimension (LxBxH) - 1200x800x1550 mm
Filling hatch (LxB) - 1200x600 mm
Filling height - 1100 mm
Bale format (LxB) - 1200x800x1000 mm
Bale weight - 300- 550 kg
Dimensions (LxBxH) - 1640x1150x2200 mm
Weight - 1600- 1800 kg

Eco-friendly solution

Baling presses bundle materials into compact bales for environmentally friendly transportation, reducing CO2 emissions and promoting sustainable processing. They save space and preserve material quality, unlike press containers or screw compactors.

Generate revenue from waste

The higher the quality of the materials and bales, the easier they are to recycle and the more revenue they can generate.

Advantages of using balers

In this way you benefit from the compaction of your waste and recyclables:

Gain space and tidiness for an effective utilisation of your business premises.
Save time and effort by eliminating the need for pre-shredding or container stuffing.
Maximise truck capacity utilisation to minimise transport and collection costs.
Improving sustainability to help conserve resources and protect the climate.
Reduce the risk of fire, vermin and tripping hazards for maximum workplace safety.
Achieve maximum revenue from your waste through high bale quality.

High bale weights in minimum space
Plug-and-play due to patented cylinder system. No on-site assembly necessary.
Simple operation thanks to digital display with operating instructions and error messages in the respective language (SPS with bale counter and operating hours counter)

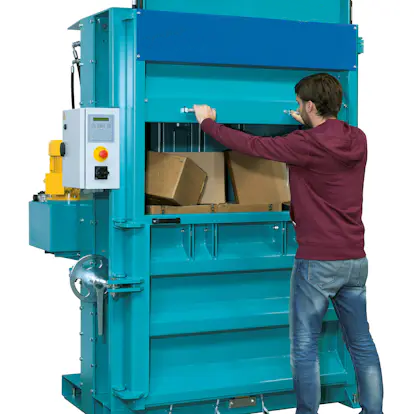

Sliding door opens automatically after pressing cycle
Handweel closing system of the press door is easy to open and guarentees maximum operator safety - even with expaning material
Minimum maintenance effort thanks to to the use of durable materials and branded components
Bale strapping system is easy to handle: dense and stackable bales due to multiple binding with steel wire or PE strapping tape
Marketable, palette-sized bales

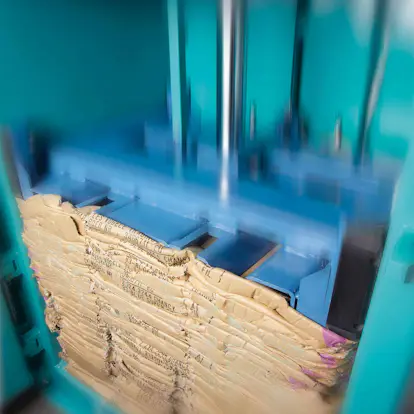

Claws inside the press chamber retain expanding material (e.g. plastic film) from returning back up – ensuring higher bale weights
The bale is fully ejected onto a pallet at the touch of a button
High durability and reliability based on our quality standards
