Brand: Yuxing Technology UMAXTECH​

Machine description

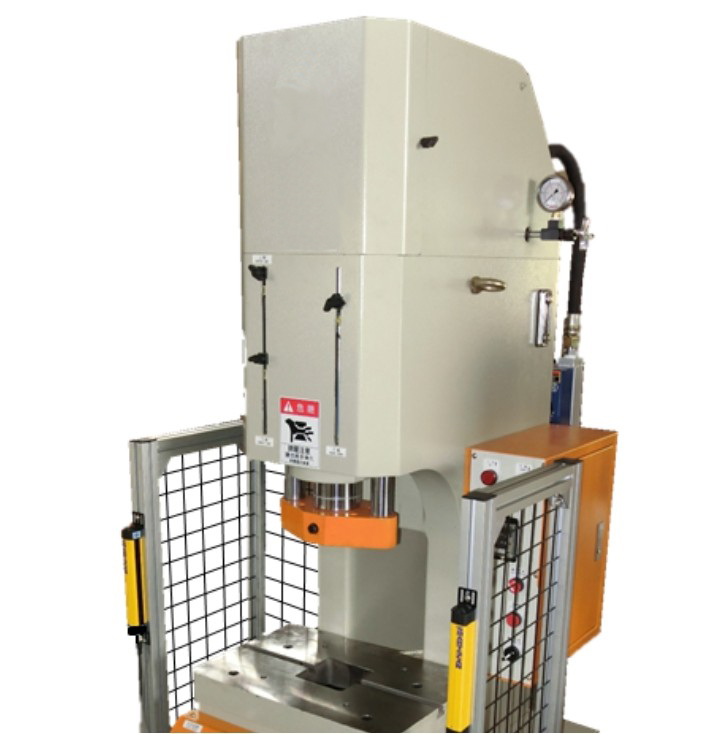

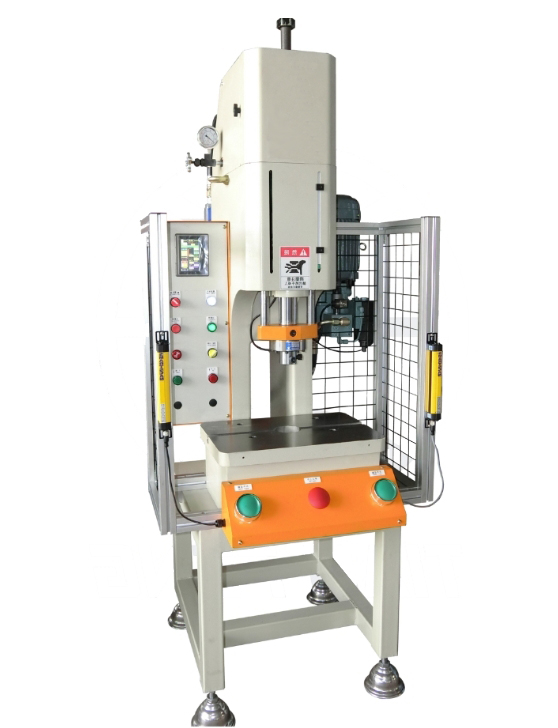

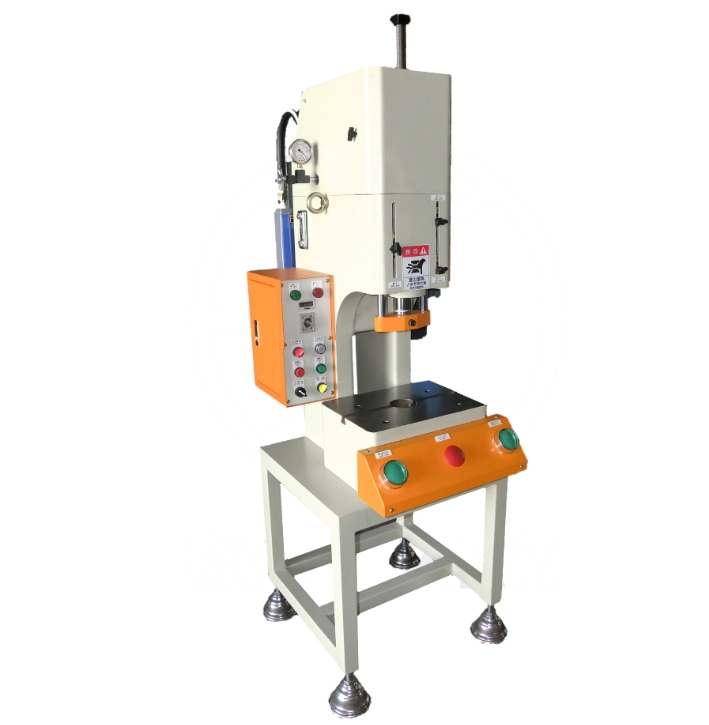

(1) The hydraulic press uses a C-shaped body design to create a flexible operating space for picking and placing workpieces and molds in three directions.
(2) The desktop C-type rapid hydraulic punch press can produce anything from 1 to 20 tons.
(3) Design of flexible operating space for loading and unloading of press
(4) Easy to operate/fast/high safety/good quality/less consumables
(5) The precise position of the mechanical bottom dead center is easy to adjust
(6) The fuel tank has a built-in design and is equipped with hidden wheels for easy movement and fixation.
(7) PLC control system is divided into standard type and CNC type

Function description of standard type and CNC type
Standard type
- Basic electronic control
- Manual/auto switching
- timer
- counter
- Mechanical lower dead center and manual adjustment of upper and lower limits

CNC type
-7-inch human-machine interface (parameter setting position, output, speed)
- PLC control system
- Position ruler (real-time display of position parameters to facilitate model calibration)
- Memory parameters (can set parameters for multiple sets of molds, greatly reducing mold calibration time)
- Ultra-low noise and energy saving

Optional items
• Safety grating and acrylic guard net
• Load cell (pressure detection system)
Vibration plate
• Feeding mechanism
Automated integration and matching
Top material removal device
Slide mechanism
• Drop hole

Hydraulic punch application range
punching
cut
• Riveting
Bearin press
PE sheet cutting
Parts pressing

Various specifications of inventory welcome to inquire

※Customization: can be customized and processed
※Delivery time: Products in stock will be shipped within one week
