Ship drone landing pad
Shipboard UAV landing pad (three-axis) - Specifications
Wide range of functions: earthquake / wave simulation
Platform size and load can be customized

A platform is needed to simulate simple wave action.
The goal is a 3DOF cradle that uses three electric cylinders to achieve three-dimensional motion.
This platform should have the following basic functions
Carrier plane φ700mm, load 15kg
Lift st 150mm (+/-75mm)

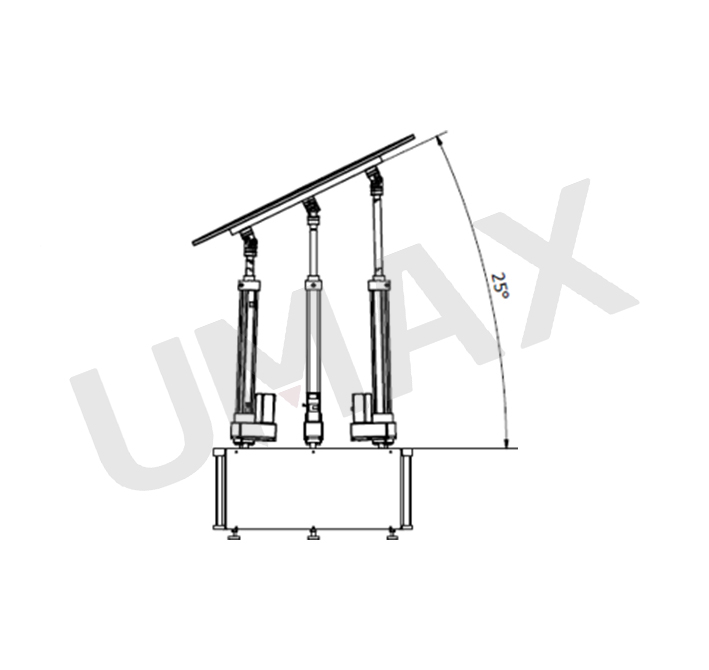

Tilt Angle 22.5°
Combined range of motion: Heave: +/-20 mm, Roll/Pitch: +/-22.5°, repetitive motion
Programming requirements: Move within the movable range according to the input amplitude and speed, and perform repeated movements.

Architecture brief:
This machine consists of three parts: platform body, control unit, and software interface
The software displays the current machine status, including simple test functions and combined action functions
In the simple action column, you can set the movement range of Heave, Roll, and Pitch respectively, and can make the electric cylinder single movement and posture movement.
In the combined exercise field, set the exercise base height, amplitude, frequency, etc. to perform combined exercise.
The system itself has a set movement limit, and any movement beyond the set range will be detected by motor.
※The human-machine interface does not include the motion simulation window.

Equipment Specifications:
Platform size: 700mm
Machine size: Φ960 x height 1200 mm
Electric cylinder stroke: st 250mm
Power supply: 220VAC power supply/5A
Control interface: computer software, power switch
​
